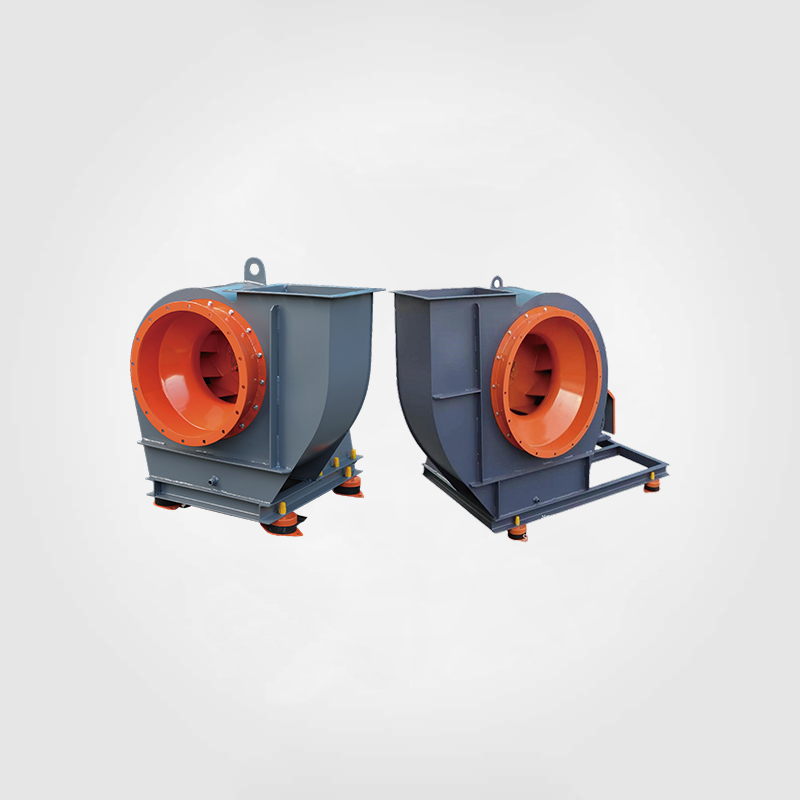

HY-72A/C型环保离心风机 产品介绍
产品特点：
1. 标配进风口法兰、防雨罩，方便施工安装
2. 国内知名品牌轴承，延长风机运行寿命
3. 机身设置清理门，日常清洁维护便捷
4. 底部设有排水孔，防止水汽、粉尘堆积堵塞风机
5. 配套电机防护等级达到IP56，防尘防水
A型风机性能参数表
| 规格 |
转速(r/min) |
配用电机(KW-P) |
流量(m³/H) |
全压(Pa) |
| 2.8A |
2900 |
1.5-2 |
1131 - 2356 |
994 - 606 |
| 3.2A |
2900 |
2.2-2 |
1688 - 3517 |
1300 - 792 |
| 3.6A |
2900 |
3-2 |
2664 - 5268 |
1578 - 989 |
| 4.0A |
2900 |
5.5-2 |
4012 - 7419 |
2014 - 1320 |
| 4.5A |
2900 |
7.5-2 |
5712 - 10562 |
2554 - 1673 |
| 5A |
2900 |
15-2 |
7728 - 15445 |
3187 - 2019 |
| 1450 |
11-2 |
7728 - 14355 |
3187 - 2219 |
| 5A |
1450 |
2.2-4 |
3864 - 7728 |
790 - 502 |
| 5A |
1450 |
3-4 |
7062 - 9885 |
957 - 759 |
| 5.6A |
2900 |
18.5-2 |
10850 - 14980 |
4220 - 3918 |
| 2900 |
22-2 |
16370 - 19200 |
3620 - 2855 |
| 6A |
2900 |
30-2 |
13584 - 27167 |
4766 - 3019 |
| 1450 |
5.5-4 |
8225 - 14091 |
1205 - 785 |
| 6A |
1450 |
4-4 |
6677 - 13353 |
1139 - 724 |
| 6.3A |
1450 |
5.5-4 |
10110 - 15810 |
1247 - 968 |
| 6.3A |
1450 |
7.5-4 |
9116 - 16085 |
1250 - 797 |
| 7.1A |
1450 |
11-4 |
12676 - 20513 |
1573 - 1168 |
| 7.1A |
1450 |
15-4 |
11700 - 23236 |
1890 - 1200 |
| 8A |
1450 |
18.5-4 |
15826 - 26869 |
2023 - 1642 |
| 8A |
1450 |
22-4 |
17450 - 27320 |
2430 - 2170 |
C型风机性能参数表
| 规格 |
转速(r/min) |
配用电机(KW-P) |
流量(m³/H) |
全压(Pa) |
| 6C |
2250 |
15-2 |
11889 - 21006 |
2763 - 2100 |
| 2000 |
11-2 |
10320 - 18780 |
2178 - 1421 |
| 1800 |
7.5-4 |
8588 - 16886 |
1789 - 1136 |
| 1600 |
5.5-4 |
7670 - 15132 |
1419 - 890 |
| 6.3C |
2300 |
22-2 |
12330 - 21780 |
3300 - 2210 |
| 2200 |
18.5-2 |
11380 - 20450 |
3010 - 2020 |
| 2000 |
15-2 |
10750 - 18890 |
2580 - 1650 |
| 7.1C |
2120 |
30-2 |
18359 - 29709 |
3357 - 2706 |
| 1900 |
22-2 |
14450 - 25500 |
2930 - 1900 |
| 1800 |
18.5-2 |
13680 - 24170 |
2640 - 1720 |
| 1700 |
15-4 |
12850 - 22680 |
2320 - 1560 |
| 1500 |
11-4 |
11410 - 21050 |
1830 - 1220 |
| 8C |
2000 |
45-2 |
24637 - 39867 |
3751 - 3024 |
| 1860 |
37-2 |
22511 - 36427 |
3131 - 2524 |
| 1800 |
30-2 |
21511 - 34808 |
2859 - 2305 |
| 1600 |
22-4 |
19385 - 31368 |
2478 - 2390 |
| 1500 |
18.5-4 |
18259 - 29546 |
2060 - 1661 |
| 1400 |
15-4 |
16883 - 27320 |
1761 - 1420 |
| 9C |
1650 |
45-4 |
28669 - 46391 |
3171 - 2556 |
| 1560 |
37-4 |
27066 - 43798 |
2826 - 2278 |
| 1420 |
30-4 |
25285 - 40916 |
2466 - 1988 |
| 1300 |
22-4 |
22793 - 36882 |
2004 - 1615 |
| 10C |
1450 |
55-4 |
31460 - 55510 |
3520 - 2340 |
| 1380 |
45-4 |
29480 - 52100 |
3110 - 2030 |
| 1250 |
37-4 |
34863 - 48797 |
2373 - 1877 |
| 1120 |
30-4 |
31237 - 43722 |
1902 - 1505 |
| 1100 |
22-4 |
29120 - 43260 |
1870 - 1160 |
| 1000 |
18.5-4 |
27890 - 39038 |
1514 - 1199 |
| 11C |
1320 |
75-4 |
44866 - 72600 |
3480 - 2805 |
| 1200 |
55-4 |
40314 - 65235 |
2810 - 2265 |
| 1120 |
45-4 |
37713 - 61026 |
2459 - 1982 |
| 1050 |
37-4 |
35437 - 57344 |
2171 - 1750 |
| 980 |
30-4 |
32836 - 53135 |
1864 - 1503 |
| 12C |
1120 |
75-4 |
53980 - 79400 |
2750 - 2010 |
| 1050 |
55-4 |
42230 - 69650 |
2830 - 1660 |
| 1000 |
45-4 |
38310 - 64380 |
2480 - 1720 |
| 900 |
37-4 |
36430 - 61730 |
2110 - 1339 |
| 12C |
800 |
30-4 |
45320 - 57260 |
1420 - 1020 |
配套电机功率配线参数表
| 电机功率(KW) |
额定电流(A) |
匹配空开(A) |
铜线截面积(mm²) |
| 0.75 |
1.84 |
6 |
1 |
| 1.1 |
2.61 |
10 |
1.5 |
| 1.5 |
3.41 |
10 |
1.5 |
| 2.2 |
4.76 |
16 |
1.5 |
| 3 |
6.34 |
16 |
2.5 |
| 4 |
